NARADA
GP Series
Nominal Voltage Capacity : 7 - 230 Ah
Design Life : > 10 years at 20°C (68°F)
Main Application : For Telecommunication and Uninterruptible power supply (UPS) and general purpose application
Range summary:

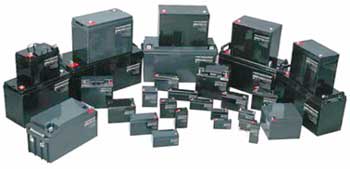

NARADA GP (General Models) series valve regulated lead acid batteries are designed with AGM (Absorbent Glass Mat) technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the field of UPS, Emergency lighting system. The GP batteries are ensured the quality with NARADAs QA system according to the ISO9001 standard.
Technical feature:
- Extra long life service design
- Non-Spillable construction design
- ABS containers and covers(UL94HB, UL94V-0) option
- Safety valve installation for explosion proof
- Higher safety & reliable construction
- Exception deep discharge recovery performance
- Low self discharge characteristic
- Flexibility design for multiple installation
Compliant standards :
IEC60896-21/22
Eurobatt guide
UL
Manufactured under system ISO 9001 (TUV)
Battery installation compliant with:
EN 50272-2 or local equivalents
Main Application:
- Cable Television
- Communication Equipment
- Security System
- UPS
- Control Equipment
- Medical Equipment
- Emergency Power System …
Products Characteristics:
Recommended float charge voltage for 12V battery:
2.25V pc at 77°F (25°C)
Self discharge rate: < 2% per month at 25°C
Shelf life : Six Months at 68°F (20°C)
Valve regulated system, no water addition needed.
