Lithium-ion
The market for battery systems is developing rapidly. There is a growing demand for efficient batteries with a large energy density. Victron Energy has a suitable for this demand: the Victron Lithium-ion battery system. This is comprised of a very modern battery with an advanced control- and security system; the so-called Battery Management System (BMS). The BMS controls the charging and discharging, immediately takes action when certain (critical) values are exceeded and safeguards an efficient energy-transfer.
|

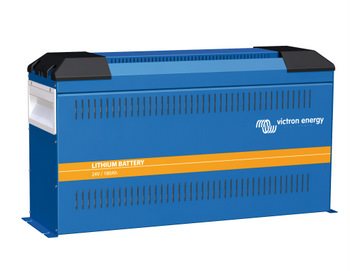

Technical specifications Victron Lithium Battery
|
|
Technology
|
Lithium iron phosphate (LiFePo4)
|
|
Nominal voltage
|
26,4 V
|
|
Nominal capacity
|
180 Ah
|
|
Nominal power
|
4,75 KWh
|
|
Weight
|
55 Kg
|
|
Power/Weight ratio
|
86 Wh/Kg
|
|
Dimensions (LxWxH) mm
|
620 x 188 x 360
|
|
|
|
|
Charge cut-off voltage at 0.05C
|
28,8 V
|
|
Discharge cut-off voltage
|
20 V
|
|
Recommended
charge/discharge current (0.3C)
|
54 A
|
|
Maximum charge current (1C)
|
180 A
|
|
Maximum discharge current (1.5C)
|
270 A
|
|
Pulse discharge current (10s)
|
1000 A
|
|
Cycle Life @80% DOD (0.3C)
|
2000
|
|
|
|
|
Serie configuration
|
Yes, easy up to 2
(more in series on )
|
|
Parallel configuration
|
Yes, easy up to 4
(more parallel on )
|
|
|
|
|
Operating temp. charge
|
0~45 °C
|
|
Operating temp. discharge
|
-20~55 °C
|
|
Storage temp.
|
-20~45 °C
|
Lityum-iyon
Akü sistemleri pazarı çok hızlı gelişiyor. Büyük enerji yoğunluğuna sahip verimli akülere olan talepte büyük bir artış var. Victron Energynin bu talebe verilecek uygun bir cevabı var: Victron Lityum-iyon akü sistemi. Bu, gelişmiş kontrol ve güvenlik sistemine sahip olan çok modern bir aküden oluşur: Akü Yönetim Sistemi (BMS). BMS, şarj etme ve boşalma işlemlerini kontrol eder ve bazı (kritik) değerler aşıldığında hemen harekete geçer ve verimli bir enerji transferini korur.
