MPPT Charge Controllers
TriStar MPPT
45 or 60 amps at up to 150 volts open circuit
The TriStar MPPT™ solar controller with TrakStar™ Technology is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 3kW.
Model Numbers TS-MPPT-45, TS-MPPT-60
Morningstar’s TriStar MPPT solar controller with TrakStar Technology™ is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 3kW. The controller provides the industry’s highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers.

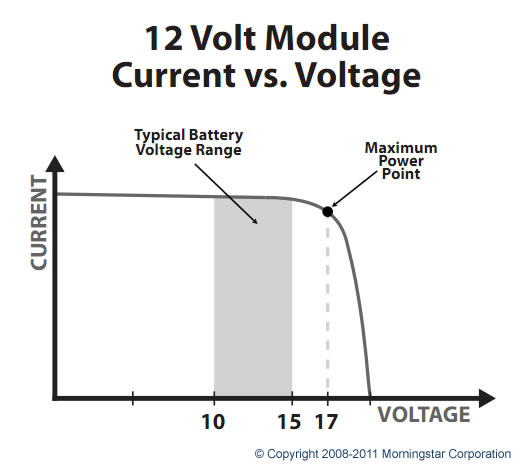

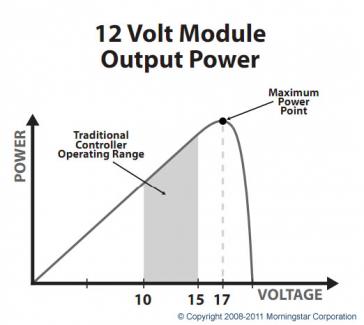

The TriStar MPPT features a smart tracking algorithm that maximizes the energy harvest the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve. This product is the first PV controller to include on-board Ethernet for a fully web-enabled interface and includes up to 200 days of data logging.
|
TriStar MPPT
|
TS-MPPT-45
|
TS-MPPT-60
|
|
Maximum Battery Current
|
45 amps
|
60 amps
|
|
Nominal Maximum Solar Input
|
|
12 volt
|
600 Watts
|
800 Watts
|
|
24 volt
|
1200 Watts
|
1600 Watts
|
|
48 volt
|
2400 Watts
|
3200 Watts
|
|
Nominal System Voltage
|
12, 24, 36 or 48 volts DC
|
|
Maximum
Solar Open Circuit Voltage
|
150 Volts DC
|
|
Peak Efficiency
|
99%
|
|
Maximum Self-consumption
|
2.7 Watts
|
|
Transient Surge Protection
|
4500 Watts/port
|
Key Features and Benefits
• Maximizes Energy Harvest
• Extremely High Reliability
• Very High Efficiency
• Extensive Networking and Communication Capabilities
• Metering and Data Logging
• Certified to IEC 62093
